Features and Benefits:

• 2-Stage Pump
• 5hp, Low RPM Motor
• 80 Gallon Vertical Tank (Made in the USA)
• Air Output 140-175 PSI
• Extremely Quiet Operation
• Set of Vibro-Isolation Pads Included
• Hands free tank drain extension
• Compressor oil drain extension tube
• Finned tank inlet tube for reduced tank water accumulation
• Heavy Duty Metal Belt Guard
• Electric: 220volt/1phase
• 1 Year Parts Only Warranty

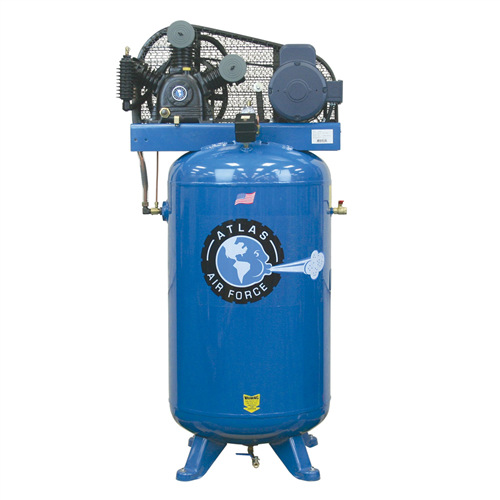

The Atlas Air Force AF6 is a entry level commercial grade two (2) stage vertical air compressor. This unit operates between 145 and 175 PSI and will run our Atlas line of sandblast cabinets (when using Medium or Medium-Fine glass bead). The combination of the commercial grade low RPM motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price.

The Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas Air Force shop compressors are built to the same exacting standards as the entire line of Atlas professional grade automotive equipment

Atlas Air Force AF6 Specifications

• Motor Running: 5 Horsepower
• Pressure Setting: 145-175 PSI
• Delivered CFM at 100 PSI: 15.0
• Delivered CFM at 175 PSI: 14.0
• Tank Capacity: 80 Gallons
• Compressor Pump: CT40 3 Cylinder, 2-Stage
• Air Outlet Size: 1/2" NPT
• Overall Dimensions: L 24 1/2" x W 24" x H 65 7/8"
• Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
• Shipping Weight: 485 lbs
