Features and benefits:

• Foldable within seconds for quick and easy storage
• Jib arm with large lifting capacity – even in 5th position
• Hard chromium plated piston rod and pump piston for long life
• Fitted with 2 castors and 2 fixed wheels for easy maneuverability even with maximum load

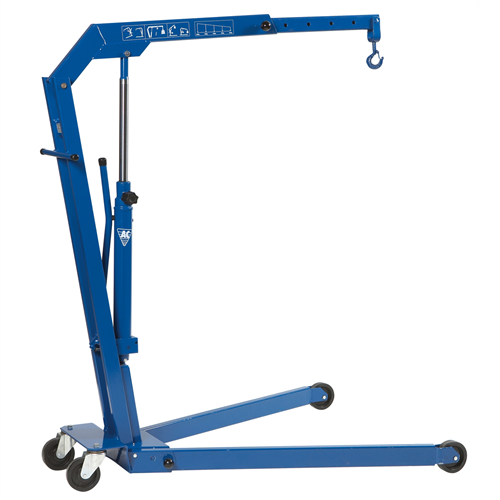

• Hydraulic workshop crane for auto workshops and service vans.
• When folded the crane takes up a minimum of space on the workshop floor.
• Jib arm with large lifting capacity – even in 5th position.
• Hard chromium plated piston rod and pump piston for long life.
• Built-in safety overload valve.
• Fitted with 2 castors and 2 fixed wheels for easy maneuverability even with maximum load.
• Lifting hook pivots 360ºt.
• Hand operated dead man’s release for optiimum safety whilst lowering.

Capacity: 2,400 lbs
Lifting Height: 79.53-54.13 inches
Jib Arm: 37.60-54.13 inches
Frame Height: 4.92 inches
Frame Length: 55.21 inches
Height: 59.84 inches
Inner Width: 38.78 inches
Frame Width: 43.70 inches
Weight: 209 lbs

 Length 0in. X Width 0in. X Height 0in.
