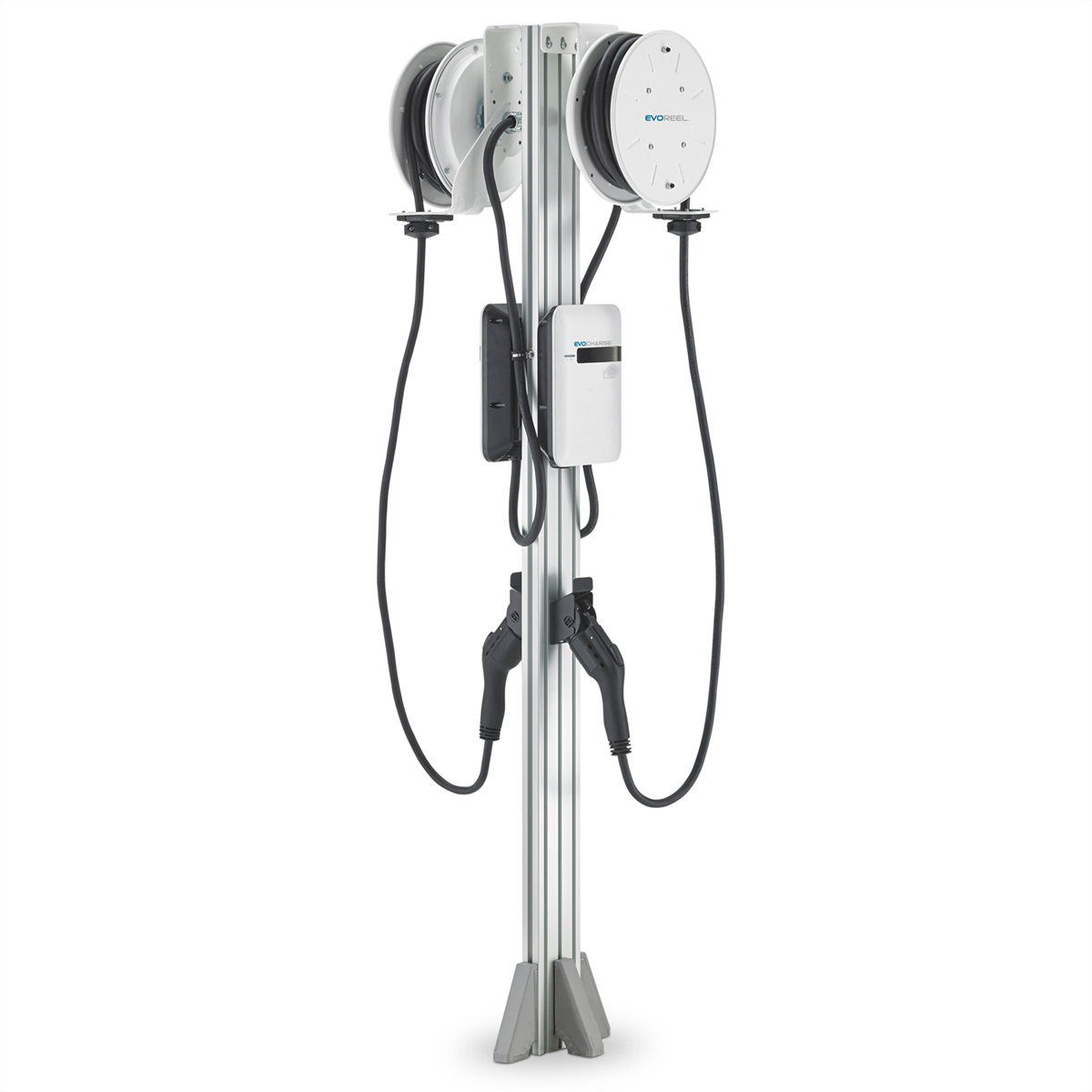

Evocharge Evc4Ac0C1B1B3
Ievse Plus Wifi & 4G Enabled Electric Vehicle Char

Evocharge Evc4Ac0C1B1B3 Ievse Plus Wifi & 4G Enabled Electric Vehicle Char
Hover or click to zoom

MSRP: $7,651.98
Tool Shack Price: $7,072.78
MFR Part No: EVC4AC0C1B1B3

Quantity in Stock:Out of Stock

SKU Number: EVOEVC4AC0C1B1B3
Qty:

Description

Features and Benefits: ?Compatibility - Compatible with all Electric Vehicles and Plug-in Hybrid Electric Vehicles sold in the United States and Canada, including Tesla (requires adapter) Connector / EVSE LEVSEl - SAE J1772 ?AC LEVSEl 2 Max Output Rating - 30A ?7.2 kW Maximum Output ? For use with dedicated 40A (or greater) Supply Circuit Alternate Adjustable Output Settings 24A ?5.76 kW Maximum Output ? For use with 30A Circuit Rating 16A 3.84 kW Maximum Output ? For use with 20A Circuit Rating Electrical Circuit / Input Power Requirements - 208-240VAC, 50/60 Hz., Single Phase ?Circuit Requirement: Dedicated ?Branch Breaker: Double pole ?Circuit Conductors: Line 1, Line 2, Earth Ground Input Power Connection - Hardwire Operational Ratings - NEMA 4, Indoor/Outdoor Rated ?Temp: -22?F to 122?F (-30?C to 50?C) ?Humidity: 95% RH Mounting: Two chargers and 2 EvoReels on a 6ft pedestal Cable Management - Standard Connector, Cable Holster, EVOREEL and 6 ft. pedestal Dimensions - EVSE: 11.0 x 7.5 x 3.2 inches (28.0 x 19.0 x 8.1 cm) EVOREEL 13.8 X 12.0 X 9.2 inches (35.1 x 30.1 x 23.4 cm) Pedestal 6 ft. (1.8 m) tall Display & Indicators - LED Charge Status Indicators (Power/Ready, Charging, Fault) Standards & Compliance - Charging Station: UL/cUL Listed ?SAE J1772, UL 2594, UL 355, CSA The EvoCharge iEVSE Plus electric vehicle charging station has a modern compact design with robust construction for maximum durability. The EvoReel is self-retracting and locking, has a convenient design for the clean, safe management of the charging cable and comes with a universal mounting bracket for wall, ceiling, or pedestal mounting. The 6 foot pedestal is made of high-strength aluminum suitable for single or dual station mounting with EvoReels. The EvoCharge iEVSE Plus is OCPP 1.6 WiFi enabled to support access control, data collection, and demand response. It also includes 4G-LTE cellular, an RFID card reader and Local Load Management capability.
Size: L 74 in. x W 17 in. x H 16 in.
