The Main Resource St505-100
Red Single Blade T-Tap (Bag Of 100)

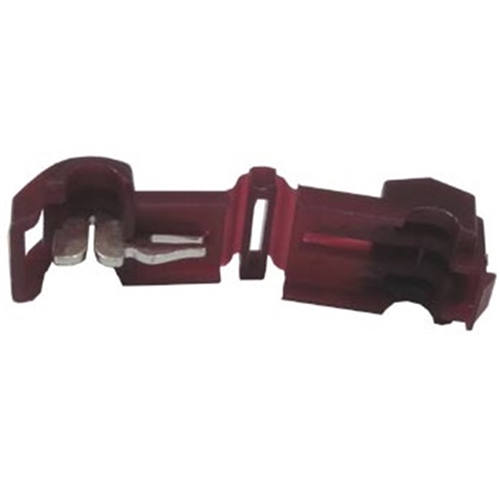

The Main Resource St505-100 Red Single Blade T-Tap (Bag Of 100)
Hover or click to zoom

MSRP: $9.99
Tool Shack Price: $6.99
MFR Part No: ST505-100

Quantity in Stock:Out of Stock

SKU Number: TMRST505-100
Qty:

Description


Features & Benefits:

  • Single blade connection
  • UL Listed and CSA Certified
  • Rated for 600V.
  • Temperature Ratng: 105°C (221°F)
  • Female T-tap connectors mate with .250" male blades

T-Tap single blade female connectors are made for quick and easy electrical connections. T-Tap single blade connectors are capable of connecting to an insulated (solid or stranded) copper wire without you cutting or stripping the wire. The insulator of the T-tap connector is made of a flame retardant nylon, and the element is tin-plated brass. A T-tap connector works best by simply closing it over the wire and applying a slight crimp with a pliers. The single blade tin-plated brass will then self-strip the wires insulation and allow you to connect into the circuit. T-Taps can connect into the circuit through a male tab push-on terminal at the opposite side. The terminals connection completes a T-splice, and is advantageous because it also allows you to easily remove the connection when needed. A T-Tap connector can be used in a variety of applications including signs, fixtures and luminaries. They are also common in wiring installation kits that come with aftermarket or add-on parts. T-tap connectors are not weather resistant, and they should not be used where exposed to the elements.


Size: L 8.5 in. x W 6.25 in. x H 0.5 in.
