ATLAS AUTOMOTIVE EQUIPMENT HTSBC420
STANDARD SAND BLAST CABINET W/ VACUUM

STANDARD SAND BLAST CABINET W/ VACUUM
Hover or click to zoom

MSRP: $1,199.00
Tool Shack Price: $1,664.81
MFR Part No: HTSBC420
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Quantity in Stock:Out of Stock

SKU Number: ATEHTSBC420
Qty:

Description


Features and Benefits

  • Media Blasting Cabinet
  • Work area: 47 1/2 x 24 x 22 1/2
  • Foot operated control valve
  • Heavy Duty blasting gun with replaceable ceramic nozzles
  • Self-contained dust collection system with cartridge filter and convenient bottom gate clean-out
  • Large top load door and dual side load doors
  • 16 guage cabinet panels and 14 gauge legs
  • Extra nozzles and plastic protectors included
  • 110V Power
  • Recommended media - Glass Bead (NOT INCLUDED)
  • Replacement Parts & Wear Items Always in Stock

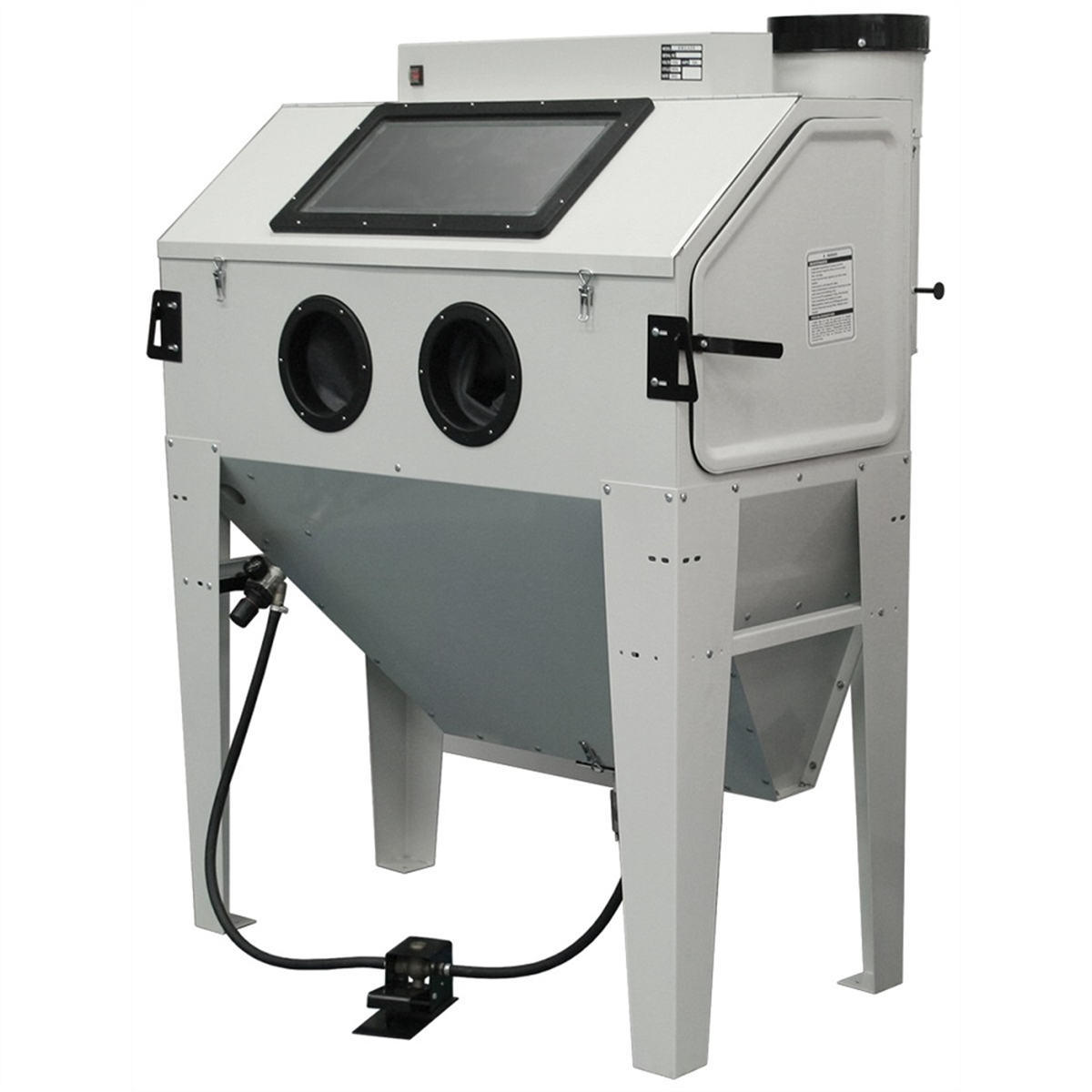

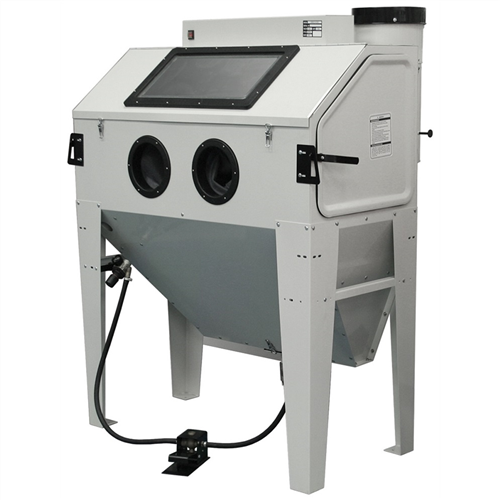

The Atlas SBC420 sandblast cabinet features dual side doors and a large front door for easy loading and unloading. The lower hopper stores the abrasive material for reuse or easy removal. The SBC420 cabinet is always ready when you are. The cabinet can be constantly connected to your air supply and is ready for immediate use when you step on the pedal. Use your new sandblast cabinet to remove scale or heavy rust from automotive parts, clean up rusty tools, etch glass, or any other special application.

The Atlas SBC420 uses a powerful vacuum system to keep the work area free of "floating" rust and used media. After the glass bead contacts the surface to be cleaned, a portion of the bead is "destroyed" becomes almost weightless. The vacuum system removes the "floating" rust particles and the "used up" glass beads.

The Atlas SBC420 has a foot pedal that controls the flow of abrasives from the air gun. The foot pedal allows the operator to concentrate on the work to be done inside the cabinet rather than hold the trigger of a gun. The heavy duty blasting gun uses ceramic nozzles (easily replaceable) with a variety of hole sizes to provide the most effective blasting area.

Atlas SBC420 Sandblast Cabinet Specifications

  • Work Area: 47 1/2" W x 24" D x 22 1/2" H
  • Overall Dimensions: 53" W x 35" D x 65 1/2" H
  • Viewing Window: 22 1/2" L x 10 1/2" H
  • Gloves: 24" Gauntlet
  • Power gun: NE490 Foot Pedal w/ Gun
  • Vacuum: Attached
  • Electric Requirement: 110volt
  • Air Requirement: 15 cfm/80-100 PSI (External Air Supply Required)
  • Shipping Weight: 400 lbs


Length 48in. X Width 36in. X Height 30in.
