Features and Benefits:

• Complete Support Bar Kit for use with Scissor Lifts
• Helps distribute weight of a vehicle on the lift
• Heavy Duty Construction
• 8,000 lb Capacity (May Vary by Lift)
• Includes 4 Short and 4 Tall Adapters
• Heavy duty rubber pad on bottom surface to protect lift surface and provide grip
• This part number WILL CALL ONLY

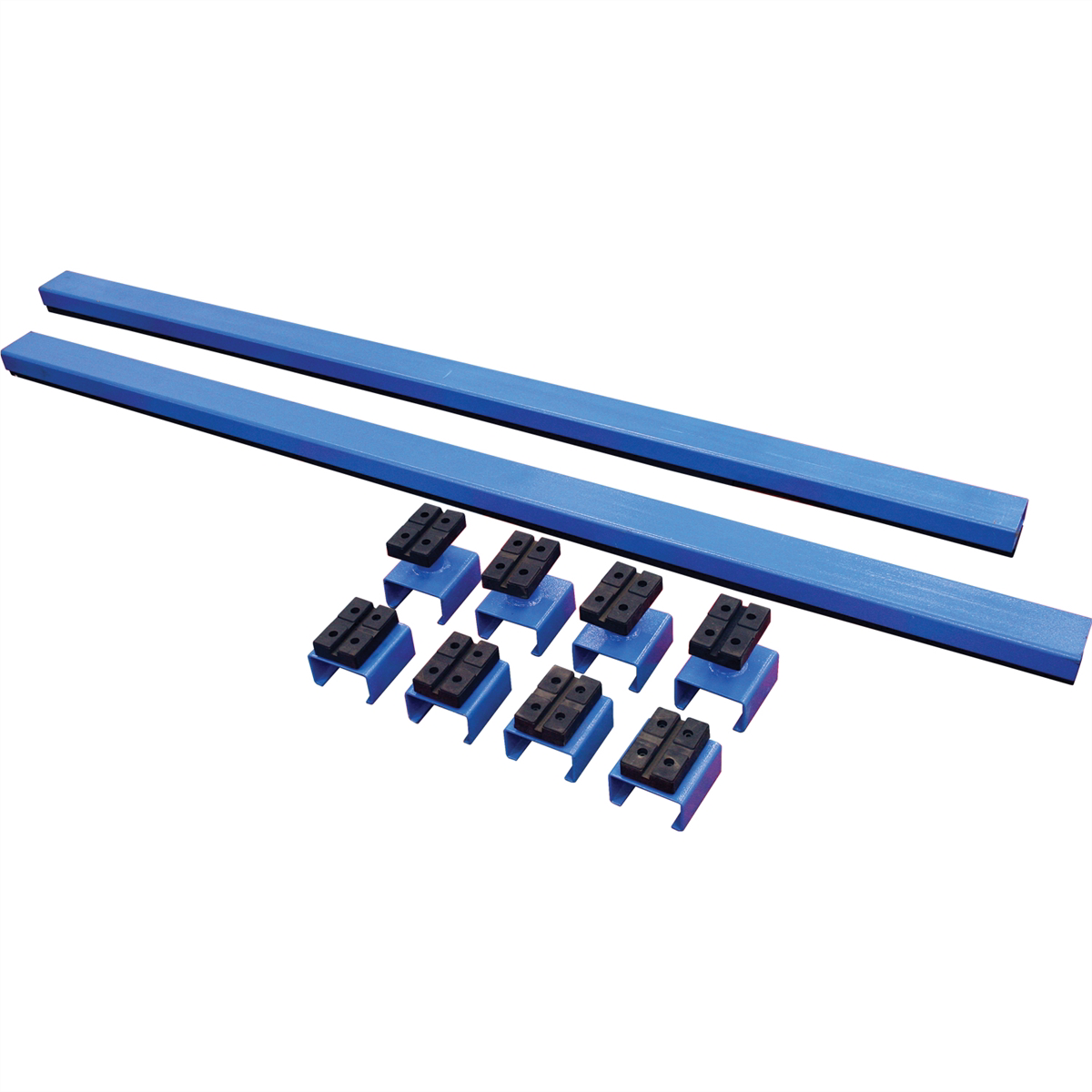

The Atlas Support Bar Kit is designed for use with scissor lift platforms when lifting heavier vehicles (pickup trucks and SUVs) with narrow frames. Many larger vehicles have "narrow" frames. When you lift these vehicles with our Atlas solid platform scissor lifts or our Atlas wheels free system (found on our Atlas 12AWFSL alignment scissor lift), the vehicles narrow frame exerts a downward force on the inside edges of the platform. Unibody style cars have a "wider frame area" that places the majority of vehicle weight over the CENTER of the platforms. The Support Bar Kit helps to disperse the weight of the narrow frame vehicles toward the center of the platform.

The Atlas Support Bar Kit is able to be placed along the length of the lift platforms or runways and the adapters can be positioned along the length of the bars to access lift points across the width of the platforms. For safety the Support Bars feature a solid rubber surface that prevents the bars from sliding on the smooth metal surface of the scissor platform.

Atlas Support Bar Kit Specifications:

• Length: 88 1/2"
• Width: 4"
• Height w/o Adapters: 2 3/4"
• Short Adapter Height: 4"
• Tall Adapter Height: 6"
• Shipping Weight: 250 lbs
