Mo-Clamp 307
Clamp Corner 90 Degree

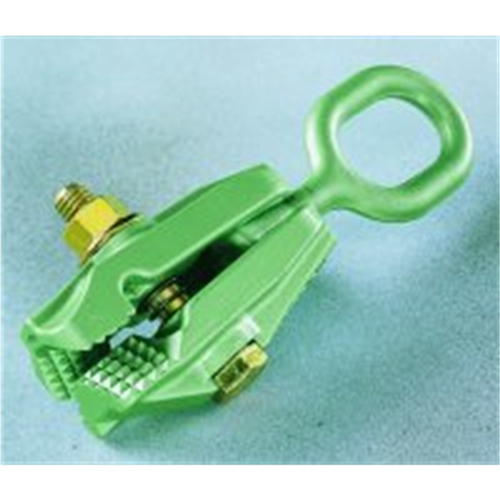

Mo-Clamp 307 Clamp Corner 90 Degree
Hover or click to zoom

MSRP: $178.06
Tool Shack Price: $218.48
MFR Part No: 307

Quantity in Stock:1

SKU Number: MOC0307
Qty:

Description

Features and Benefits:
  • Overall Length: 7" (178 mm)
  • Weight: 2.14 lbs (.97 kg)
  • Capacity: 3 tons (2,722 kg)
  • Throat Depth: 1" (25.5 mm)
  • Made of heat treated steel
With 3 tons of capacity, the corner clamp conforms to the exacting standards of all Mo-Clamp products.  Made from Mo-Clamp Tru-Tuff,  heat-treated steel alloy.  The 90 degree corner clamp uses a drop forged wedge for added strength.  Eliminates the need to use two separate clamps and will be able to get into narrow, confined areas.  The cross-hatched teeth are offset to provide a firm grip for straight ahead pulls on right angle corners in the following situations: Where core supports meet the apron. Front and rear sub frame rail assemblies on unbodies.  Frame horns on full frame vehicles with an open end. Forward or backward pulls on rockers when cut to pull and realign the B-Pillar.
Size: L 7.5 in. x W 5 in. x H 3.25 in.
